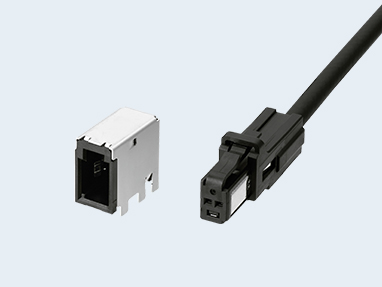

SE-R1
Ethernet Connectors
RoHS Compliant
Features
1. 100BASE-T1 and 1000BASE-T1 compliant.
2. Applicable Cable: STP cable.
3. The narrow design with a width of 8.1mm (plug) allows for multiple uses.
4. High contact reliability with two-point contact structure.
5. Country of Origin：China
･Part No. XX：Differs by key codes and colors. Please contact us for more information.
Specification
- Industrial Standard
- －
- Number of Pins
- 2
- Pitch
- －
- Waterproof / Non-waterproof
- Non-waterproof
- Mounting Style
- Terminal: SMT, Shell: DIP (Reflow)
- Mounting Direction
- Right Angle
- Locking Style
- Full-locking
- Plug Shape
- Right Angle
- Rated Voltage AC/DC
- 50V DC, 1A
- Contact Resistance
- 25mΩ max.
- Insulation Resistance
- 100MΩ min. at 500V DC
- Withstanding Voltage
- 100V AC (for one minute)
- Operating Temperature Range
- －40℃ to ＋105℃
Material and Plating
- Housing
- Thermoplastic Resin
- Contact
- Cu Alloy, Sn Plating
- Shield
- Stainless steel, Sn Plating
Application
Automotive Equipment
No applicable products
