USB-A

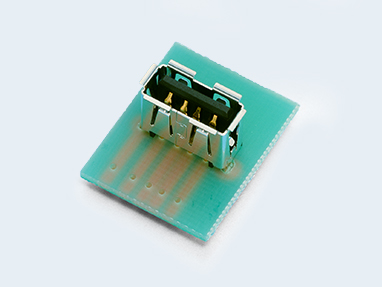

USB 2.0 Standard-A Receptacle
RoHS Compliant
Features
1. Low profile of 10.5mm height when mounted.
2. Four pins design, 2 each for power and signal.
3. Offically qualified for USB2.0 High speedcertification.
4. PCB snap-fit designed.
2. Four pins design, 2 each for power and signal.
3. Offically qualified for USB2.0 High speedcertification.
4. PCB snap-fit designed.
Specification
- Industrial Standard
- USB2.0 High-Speed
- Number of Pins
- 4
- Pitch
- 2mm
- Waterproof / Non-waterproof
- Non-waterproof
- Mounting Style
- DIP
- Mounting Direction
- Vertical
- Locking Style
- Haif-locking
- Rated Voltage AC/DC
- 30V AC, 1A
- Contact Resistance
- 30mΩ max.
- Insulation Resistance
- 1000MΩ min. at 100V DC
- Withstanding Voltage
- 750V AC (for one minute)
- Operating Temperature Range
- －25℃ to ＋80℃
Material and Plating
- Housing
- Thermoplastic Resin
- Contact
- Cu Alloy
- Shield
- Cu Alloy
Application
Automotive Equipment, Industrial Equipment, Home appliances, Amusement
