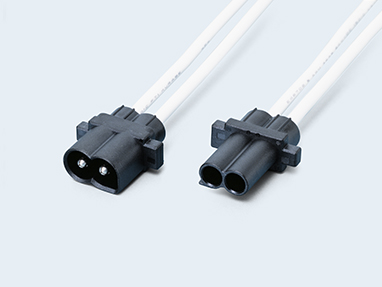

LC-5CL
Lamp Connectors
RoHS Compliant
Features
1. This is a middle-voltage connector for lamps capable of handling an DC voltage of up to 13kV(peak).
2. This compact connector design is an ideal choice for downsized equipment.
3. This is not compatible with LC-5 series, and erroneous insertion proof configuration.
4. Country of Origin：Japan(Harness products：Japan, China)
2. This compact connector design is an ideal choice for downsized equipment.
3. This is not compatible with LC-5 series, and erroneous insertion proof configuration.
4. Country of Origin：Japan(Harness products：Japan, China)
Specification
- Mounting Direction
- －
- Rated Voltage AC/DC
- 250V AC/DC, 7A
- Contact Resistance
- 20mΩ max.
- Insulation Resistance
- 1000MΩ min. at 500V DC
- Withstanding Voltage
- 13kV DC (for one minute)
- Operating Temperature Range
- －20℃ to ＋150℃
Material and Plating
- Housing
- Thermoplastic Resin
- Contact
- Cu Alloy
Application
Lighting equipment
No applicable products
LC-5CL Product List
--Result(s)
| Parts No. |
|
||
|---|---|---|---|
| ${item.field_teikaku_denatsu_denryu} | |||
