CRS9001-3101F
CM-S

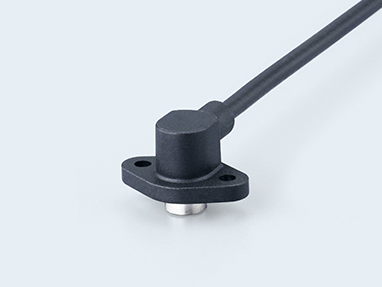

Coaxial Connectors for Automotive Camera Module (Small Type)
RoHS Compliant
Specification
| Features | 1. This is a connector for high pixel type automotive camera modules. 2. Covers a wide operating frequency range from DC to 3GHz, and achieves excellent high frequency performance. 3. Waterproofing : IPX7 (Mating waterproof) 4. Straight and right angle types of plugs are available. 5. Conversion adaptor to convert Fakra coaxial connector is also available. 6. Floating Structure with matimg alignment：±0.25mm 7. Country of Origin：China ・For details on conversion adapters, please refer to the PDF catalog. (CKV9001-01XXF, CKV9001-02XXF) |
|---|---|
| Application | Automotive Camera |
| Type | External Connector for Automotive device |
| Plug/Receptacle | Plug |
| Frequency Range | DC to 3GHz |
| Nominal Impedance | 50Ω |
| V.S.W.R. | 1.3max.(DC to 1GHz), 1.5max.(1 to 3GHz) |
| Insertion Loss | 1.3dBmax. (DC to 3GHz) |
| Dimention | Length: 12.4mm Width: 19.6mm Height: 13.0mm |
| Waterproof / Non-waterproof | Waterproof (Mating waterproof) |
| Applicable Cable | 1.5D |
| Applicable Cable Diameter | Φ3mm |
| Rated Voltage AC/DC | 250V AC, 1.5A |
| Contact Resistance | 20mΩ Max. |
| Operating Temperature Range | －40℃ to ＋105℃ |
| Mating Cycle Life | 1000 cycles |
| Packaging | Bulk |
Material and Plating
| Terminal | Cu Alloy, Au Plating |
|---|
