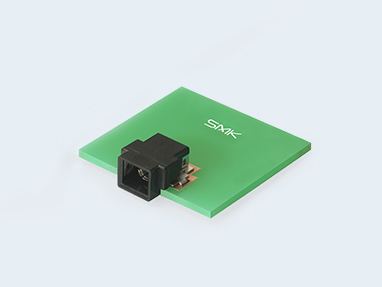

CRS5001-3202F
TC-15
Rectangular Coaxial Connectors
RoHS Compliant
Technical Information Data
Specification
| Features | 1. High mating retention force of the plug and receptacle with a metal locking type. 2. An automatic mountable connector with the receptacle of an edge mounting type and its profile as low as 4.5mm height X 12mm width X 11mm depth. 3. Country of Origin：Japan For Converting Adapter：CRS1001-1901F, CRC1001-3501F, Please refer to the catalog pdf. |
|---|---|
| Application | Automotive Equipment |
| Type | External Wiring Connector |
| Plug/Receptacle | Receptacle |
| Frequency Range | DC to 6GHz |
| Nominal Impedance | 50Ω |
| V.S.W.R. | 1.5 max. (DC to 6GHz) |
| Insertion Loss | 2.5dB max.(5.8GHz)(include the cable loss) |
| Dimention | Length: 11mm Width: 12mm Height: 6.5mm |
| Mounting Height | 4.5mm |
| Waterproof / Non-waterproof | Non-waterproof |
| Mounting Style | SMT |
| Mounting Direction | Right angle |
| Applicable Cable | － |
| Rated Voltage AC/DC | AC 250V r.m.s. 1A |
| Contact Resistance | 20mΩ Max. (center contact), 15mΩ Max. (external contact) |
| Operating Temperature Range | -40℃ to ＋105℃ |
| Mating Cycle Life | 100 cycles |
| Packaging | Embossed Taping (600 pcs / reel） |
Material and Plating
| Housing | Thermoplastic Resin |
|---|---|
| Terminal | Cu Alloy, Au Plating |
