TS-9B

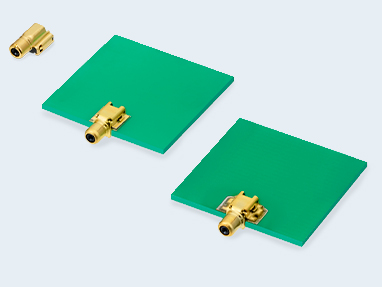

RF Coaxial Connectors with Switch (SMT)
RoHS Compliant
Features
1. Coaxial connector with switch of right-angle type, that can be connected to an external circuit.
2. The operating frequency ranges extensively from DC to 4GHz with good RF performance.
3. Receptacles are available on-board type and mid-mount type.
On Board Type：CRS5001-5701F
Mid Mount Type：CRS5001-5001F, CRS5001-6701F(Through Hole Type)
4. The compatible plug is our TS-9P series, and this plug can be used with either the TS-9A or B series.
5. Mating of the plug and receptacle is a half-locking structure with positive click feeling.
6. Embossed taping for automatic mounter.
7. Country of Origin : China
2. The operating frequency ranges extensively from DC to 4GHz with good RF performance.
3. Receptacles are available on-board type and mid-mount type.
On Board Type：CRS5001-5701F
Mid Mount Type：CRS5001-5001F, CRS5001-6701F(Through Hole Type)
4. The compatible plug is our TS-9P series, and this plug can be used with either the TS-9A or B series.
5. Mating of the plug and receptacle is a half-locking structure with positive click feeling.
6. Embossed taping for automatic mounter.
7. Country of Origin : China
Specification
- Type
- External connector with Switch
- Frequency Range
- DC to 4GHz
- Nominal Impedance
- 50Ω
- V.S.W.R.
- Normal close 1.3max. (DC to 1GHz), 1.4max.(1 to 3GHz), 1.5max.(3 to 4GHz) [CRS5001-5001F, CRS5001-6701F] , 1.6max.(3 to 4GHz) [CRS5001-5701F]
- Insertion Loss
- Normal close 0.2dB max. (DC to 1GHz), 0.3dB max. (1 to 3GHz),
0.5dB max. (3 to 4GHz)[CRS5001-5001F, CRS5001-6701F],
0.6dB max. (3 to 4GHz) [CRS5001-5701F] - Mounting Height
- 3.2mm,1.5mm
- Waterproof / Non-waterproof
- Non-waterproof
- Mounting Style
- SMT, SMT (through-hole type)
- Mounting Direction
- Right Angle
- Rated Voltage AC/DC
- 100V AC/DC
- Contact Resistance
- 100mΩ max., initially
- Operating Temperature Range
- －25℃ to ＋85℃
Material and Plating
- Housing
- Thermoplastic Resin
- Terminal
- Cu Alloy, Au Plating
Application
Smartphones, Tablet, PC, Mobile devices
