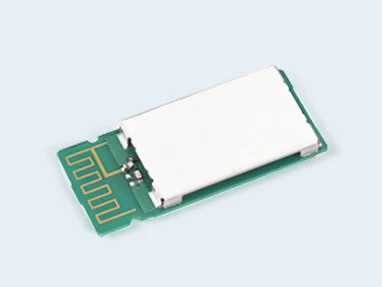

BT801
Dual Mode Bluetooth® Module
Features
1.Prepare 2 type modules.The BT801 is a complete module that implements both SPP*1 and SSS*2 a serial communication service developed by SMK. The BT801-AP2 supports Apple iAP*3 protocol in addition to the specifications of the BT801.
2. Surface mounting module with a built-in printed antenna.
3. Acts as Master or Slave, Central or Peripheral.
4.The module has acquired Bluetooth SIG certification and radio law certifications in Japan ,U.S., Canada, and Europe.
*1) SPP: A Bluetooth profile, which defines the procedures for sending and receiving ?data by using Bluetooth communication like a virtual serial port.
*2) SSS: Abbreviation of SMK Serial port Service. An original service of SMK for serial communication over Generic attribute profile (GATT).
*3) iAP: Abbreviation of iPod Accessory Protocol of Apple Inc. It will be necessary to join Apple Inc. MFi license program to use the BT801-AP2 module.
Specification
- Bluetooth Specification
- Version 5.0
- Operating Temperature Range
- ー40℃ to ＋85℃
- Dimention
- 25.0 ×11.0 ×2.3 mm
- Mounting Style
- Surface Mount Device
- Power Supply
- DC2.7～3.6V
Application
Mobile printers, Barcode readers, Measuring instruments, Healthcare devices, Smartphone accessory devices, etc.
No applicable products
BT801 Product List
--Result(s)
| Parts No. |
|
|
|
|---|---|---|---|
| ${item.field_gaikei_sunpo} | ${item.field_jisso_hoho} | ${item.field_dengen_denatsu} | |
