LGP7031-0900F
DC-5322

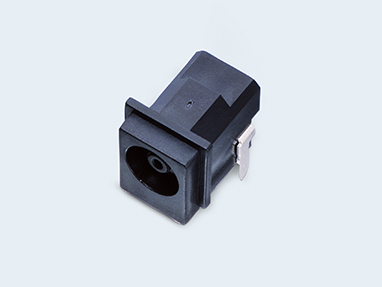

DC Power Supply Jack (JEITA RC-5322)
RoHS Compliant
Technical Information Data
Specification
| Industrial Standard | JEITA RC5322 |
|---|---|
| Plug/Jack | Jack |
| Dimention | Length:14.5mm Width:11mm Height:16mm |
| Mounting Height | 12.5mm |
| Mounting Style | DIP |
| Mounting Direction | Right angle |
| Rated Voltage AC/DC | DC24V 2A |
| Contact Resistance | 30mΩ Max. |
| Insulation Resistance | DC 500V 100MΩ Min. |
| Withstanding Voltage | AC 500V (for one minute) |
| Operating Temperature Range | -40℃ to +85℃ |
| Mating Cycle Life | 5000 cycles |
| Packaging | Bulk |
Material and Plating
| Housing | Thermoplastic Resin |
|---|---|
| Contact | Cu Alloy, Ag Plating |
