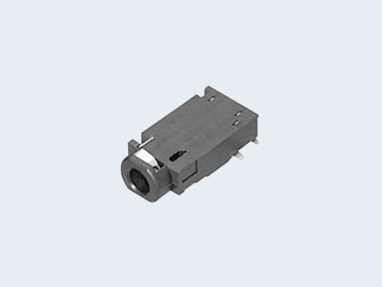

LGK1509-1001F
JK-25
2.5mm Dia. Jack
RoHS Compliant
Technical Information Data
Specification
| Features | 1. It is a small jack with a diameter of 2.5 mm. 2. SMD and DIP types are available.＜br＞ 3. Country of Origin：China＜br＞ |
|---|---|
| Application | Mobile devices, Home appliance |
| Applicable Plug Diameter | 2.5mm |
| Number of Pins | 4 |
| Switch | With |
| Waterproof / Non-waterproof | Non-waterproof |
| Dimention | Length: 13mm Width: 6.5mm Height: 4.4mm |
| Mounting Height | 3.7mm |
| Mounting Style | SMD |
| Recommended Mounting | Reflow soldering |
| Mounting Direction | Right angle |
| Rated Voltage AC/DC | DC12V 1A |
| Contact Resistance | 30mΩ Max. |
| Insulation Resistance | DC 500V 100MΩ Min. |
| Withstanding Voltage | AC 500V (for one minute) |
| Operating Temperature Range | -40℃ to +85℃ |
| Mating Cycle Life | 5000 cycles |
| Packaging | Embossed Taping (500 pcs / reel） |
Material and Plating
| Housing | Thermoplastic Resin |
|---|---|
| Sleeve Spring | Cu Alloy, Ag Plating ,Au Plating |
| Tip Spring | Cu Alloy, Ag Plating |
