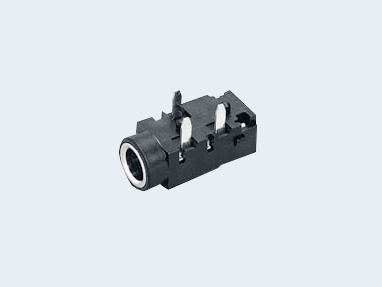

LGY2512-0100F
JK-35
3.5mm Dia. Jack
RoHS Compliant
Technical Information Data
Specification
| Features | 1. It is a small jack with a diameter of 3.5 mm. 2. A wide selection is available including SMD, DIP and Mid Mount types.＜br＞ 3. Country of Origin：China＜br＞ |
|---|---|
| Application | Smartphone, Tablet PC, PC, Mobile devices, Automotive Equipment, Home appliance, Amusement |
| Applicable Plug Diameter | 3.5mm |
| Number of Pins | 3 |
| Switch | Without |
| Waterproof / Non-waterproof | Non-waterproof |
| Dimention | Length: 14mm Width: 6.5mm Height: 8mm |
| Mounting Height | 5mm |
| Mounting Style | DIP |
| Recommended Mounting | Flow Soldering, Manual Soldering |
| Mounting Direction | Right angle |
| Rated Voltage AC/DC | DC12V 1A |
| Contact Resistance | 30mΩ Max. |
| Insulation Resistance | DC 500V 100MΩ Min. |
| Withstanding Voltage | AC 500V (for one minute) |
| Operating Temperature Range | -30℃ to +70℃ |
| Mating Cycle Life | 5000 cycles |
| Packaging | Bulk |
Material and Plating
| Housing | Thermoplastic Resin |
|---|---|
| Sleeve Spring | Cu Alloy, Sn Plating |
| Tip Spring | Cu Alloy, Sn Plating |
