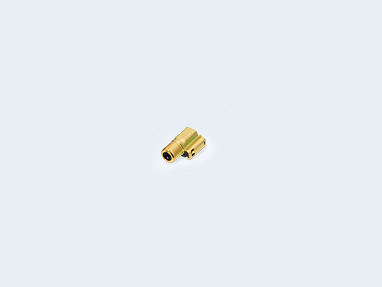

CRS5001-5701F

TS-9B
RF Coaxial Connectors with Switch (SMT)

RoHS Compliant

Technical Information Data

3D model(STEP) 3D model(IGES) 3D model(Acrobat3D) 2D model(DXF)
Product Inquiry

Specification

Features
1. Coaxial connector with switch of right-angle type, that can be connected to an external circuit.
2. The operating frequency ranges extensively from DC to 4GHz with good RF performance.
3. Receptacles are available on-board type and mid-mount type.
　 On Board Type：CRS5001-5701F
　 Mid Mount Type：CRS5001-5001F, CRS5001-6701F(Through Hole Type)
4. The compatible plug is our TS-9P series, and this plug can be used with either the TS-9A or B series.
5. Mating of the plug and receptacle is a half-locking structure with positive click feeling.
6. Embossed taping for automatic mounter.
7. Country of Origin : China
Application
Smartphone, Tablet PC, PC, Mobile devices
Type
External Connector with Switch
Plug/Receptacle
Receptacle
Frequency Range
DC to 4GHz
Nominal Impedance
50Ω
V.S.W.R.
Normal close 1.3 max. (DC to 1GHz) , 1.4 max. (1 to 3GHz), 1.6 max. (3 to 4GHz)
Insertion Loss
Normal close 0.2dB max. (DC to 1GHz) , 0.3dB max. (1 to 3GHz), 0.6dB max. (3 to 4GHz)
Dimention
Length: 6.95mm Width: 3.8mm Height: 3.2mm
Mounting Height
3.2mm
Waterproof / Non-waterproof
Non-waterproof
Mounting Style
SMT
Mounting Direction
Right angle
Applicable Cable
－
Rated Voltage AC/DC
100V AC/DC
Contact Resistance
100mΩ Max.
Operating Temperature Range
-25℃ to +85℃
Mating Cycle Life
5000 cycles
Packaging
Embossed Taping (2500 pcs / reel）

Material and Plating

Housing
Thermoplastic Resin
Terminal
Cu Alloy, Au Plating
